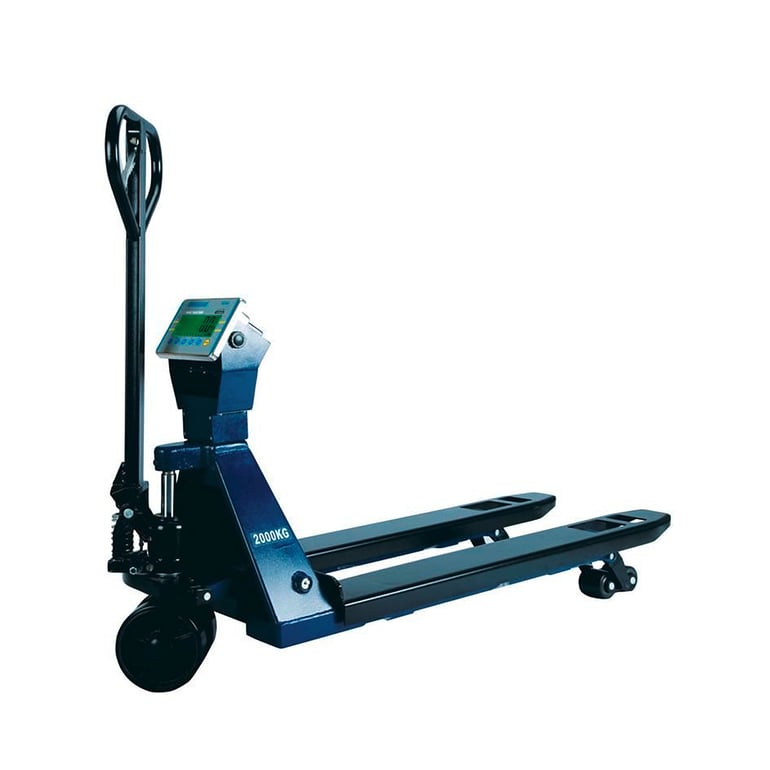

Pallet truck scales

2000 kg load, 500 g

Art. no.: 15-4862
  • IP66 rated indicator
  • Check and percentage weighing
  • Parts counting
This product is no longer available.
See all Pallet truck scales here

Product information

Practical pallet truck scales that allow for heavy-duty, on-the-move industrial weighing in warehouses, on the production floor or in the shipping department. Fitted with an adjustable, wash down indicator.
Weigh goods on pallets prior to shipping or storage on pallet racking with these heavy-duty steel pallet scales. The grade 304 stainless steel indicator is rated to IP66, meaning it can be washed down and is dust resistant. Different coloured LEDs show whether you are underweight, overweight or within acceptable limits when check weighing while the capacity tracker shows you where you are in the weighing range, helping to protect from overload. The large, backlit display is easy to read in any lighting condition and the internal, rechargeable battery provides up to 90 hours of use without the need to be plugged in. Thanks to the bi-directional RS-232 interface you can display information on a computer or print it out.

The reinforced-steel forks on the scales are 1150 mm long with an overall width of 540 mm and can lift maximum capacity of 2000 kg from 77 mm to 192 mm.

Features:
Tolerance: 0.05% of full scale (+/- 1kg)
IP66 rated (protected against strong jets of water)
Backlit LCD display
Hold function
Full range tare
Check weighing LED lights to show acceptable limits
Time/date display (to display and print time and/or date of weighing)
Colour coded keys
Zero turning radius pivot steering

Applications:
Weighing (3 units – kg, lb, newton)
Check weighing
Percentage weighing
Parts counting
Totalisation
Animal/dynamic weighing

The scales are supplied calibrated but if you require a certificate, please add this as an accessory to your order. Calibration certificates must be ordered at the same time as the scales.
Weigh goods on pallets prior to shipping or storage on pallet racking with these heavy-duty steel pallet scales. The grade 304 stainless steel indicator is rated to IP66, meaning it can be washed down and is dust resistant. Different coloured LEDs show whether you are underweight, overweight or within acceptable limits when check weighing while the capacity tracker shows you where you are in the weighing range, helping to protect from overload. The large, backlit display is easy to read in any lighting condition and the internal, rechargeable battery provides up to 90 hours of use without the need to be plugged in. Thanks to the bi-directional RS-232 interface you can display information on a computer or print it out.

The reinforced-steel forks on the scales are 1150 mm long with an overall width of 540 mm and can lift maximum capacity of 2000 kg from 77 mm to 192 mm.

Features:
Tolerance: 0.05% of full scale (+/- 1kg)
IP66 rated (protected against strong jets of water)
Backlit LCD display
Hold function
Full range tare
Check weighing LED lights to show acceptable limits
Time/date display (to display and print time and/or date of weighing)
Colour coded keys
Zero turning radius pivot steering

Applications:
Weighing (3 units – kg, lb, newton)
Check weighing
Percentage weighing
Parts counting
Totalisation
Animal/dynamic weighing

The scales are supplied calibrated but if you require a certificate, please add this as an accessory to your order. Calibration certificates must be ordered at the same time as the scales.

Documents

Product specifications

  • Length:1525 mm
  • Height:1175 mm
  • Width:550 mm
  • Graduation:500 g
  • Colour:Blue
  • Material:Steel
  • Load capacity:2000 kg
  • Calibratable:Yes
  • Counting scale:Yes
  • Weight:125 kg
  • Assembly:Assembled
