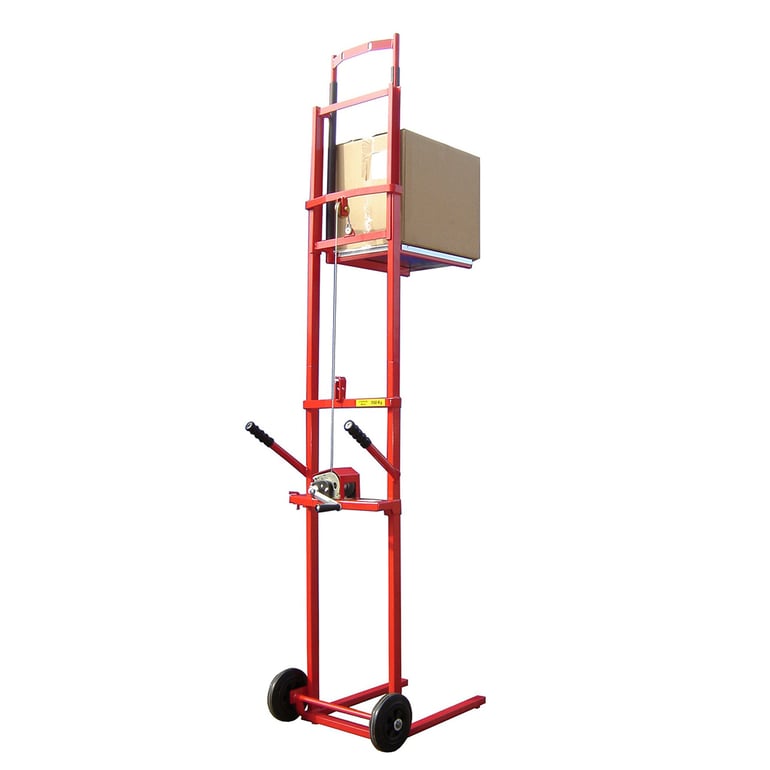

Manual winch stacker


Art. no.: 15-3942
  • 150 kg capacity
  • Removable platform
  • Lifts up to 1700 mm
Lightweight yet strong, mini winch stacker with manual operation, ideal for handling boxes, crates, sacks and small pallets. Supplied complete with a removable platform and removable height extension frame. Also doubles up as a sack truck.
Excl. VAT
Loading delivery time...
7 year warranty

Product information

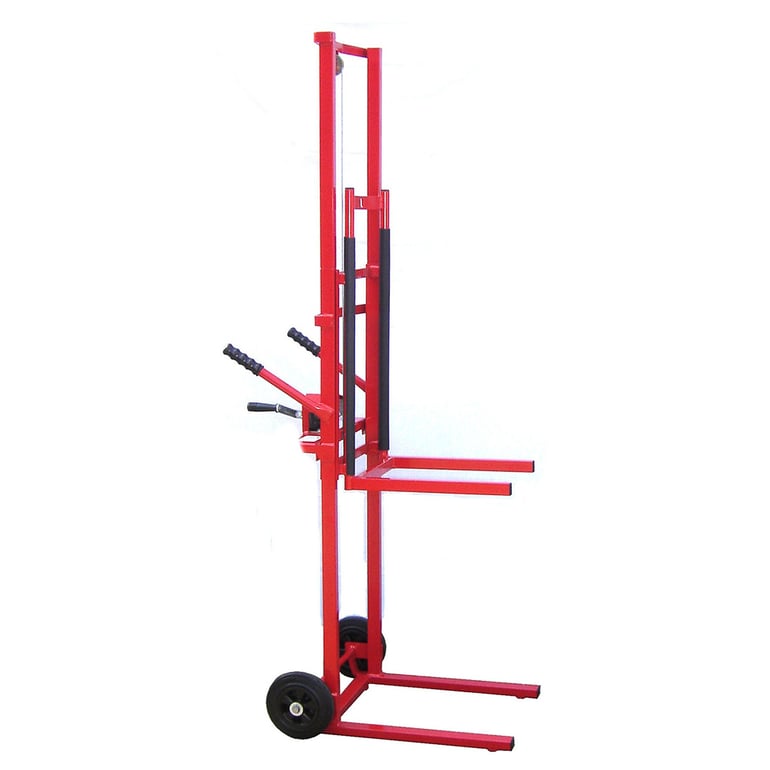

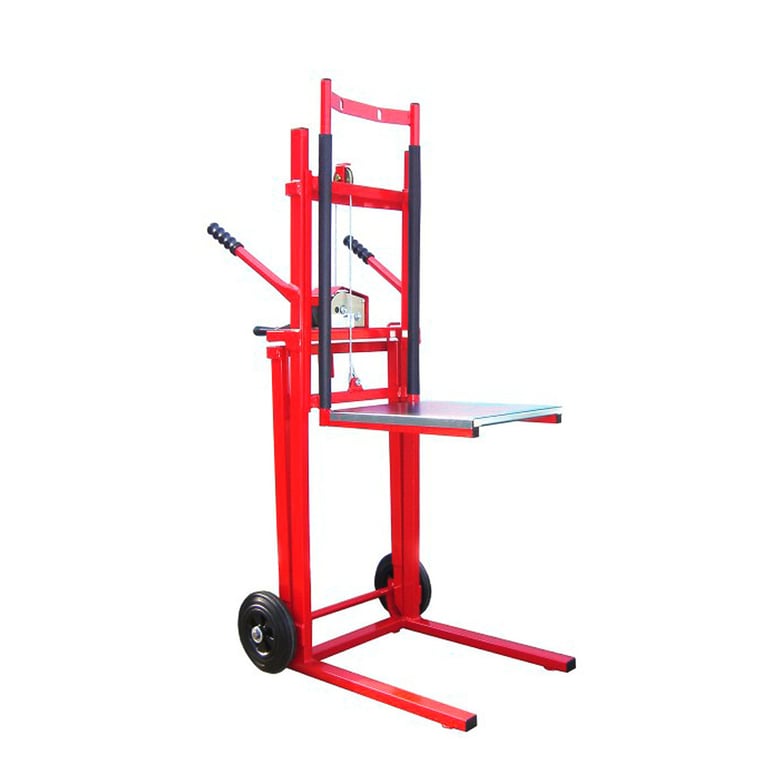

This practical small stacker truck also doubles up as a sack truck thanks to the two Ø 200 mm, solid rubber wheels on the rear and the ergonomic handles. It also has two steel ball rollers on each support leg to provide additional manoeuvrability. The hand winch, which has a no-maintenance clutch winch mechanism, operates on a Ø 4 mm, zinc-coated cable and raises the load 65 mm on each turn. The standard lift height is between 40 and 1070 mm, but with the removable extension mast frame attached the maximum lift height is increased to 1700 mm. The fork section is W 27 x H 40 mm. You can also use the stacker to move small boxes and loads by using the removable 450 x 450 mm platform that is designed to fit over the forks.

The stacker can also be fitted with a V-shaped platform or cradle as required. Please contact our Sales Team for more information.


Download care instructions

Product specifications

  • Length:830 mm
  • Height:1335 mm
  • Width:610 mm
  • Frame height min/max:1335-1900 mm
  • Lift height:40-1700 mm
  • Fork length:450 mm
  • Width over forks:350 mm
  • Wheel diameter:200 mm
  • Colour:Red
  • Material:Steel
  • Number of fixed wheels:2
  • Load capacity:150 kg
  • Tyre tread:Solid rubber
  • Steering wheel:Rubber
  • Weight:37 kg
  • Assembly:Assembled
  • Testing:CE
