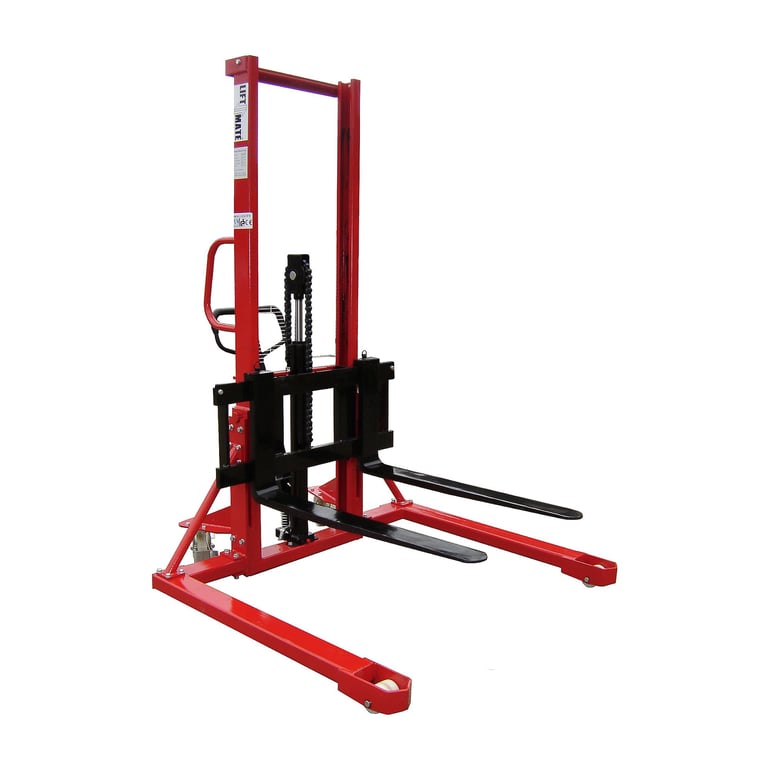

Manual straddle stacker

1000 kg load, 1540x1500x2050 mm

Art. no.: 15-0234
  • 1000 kg capacity
  • Wide straddle legs
  • Adjustable fork width
Manual straddle stacker for the transport and handling of many different pallets including closed bottom pallets. Fitted with polyurethane steering and tandem fork wheels. It comes with a pump handle and foot pedal for optional step-on operation.
Excl. VAT
Loading delivery time...
7 year warranty

Product information

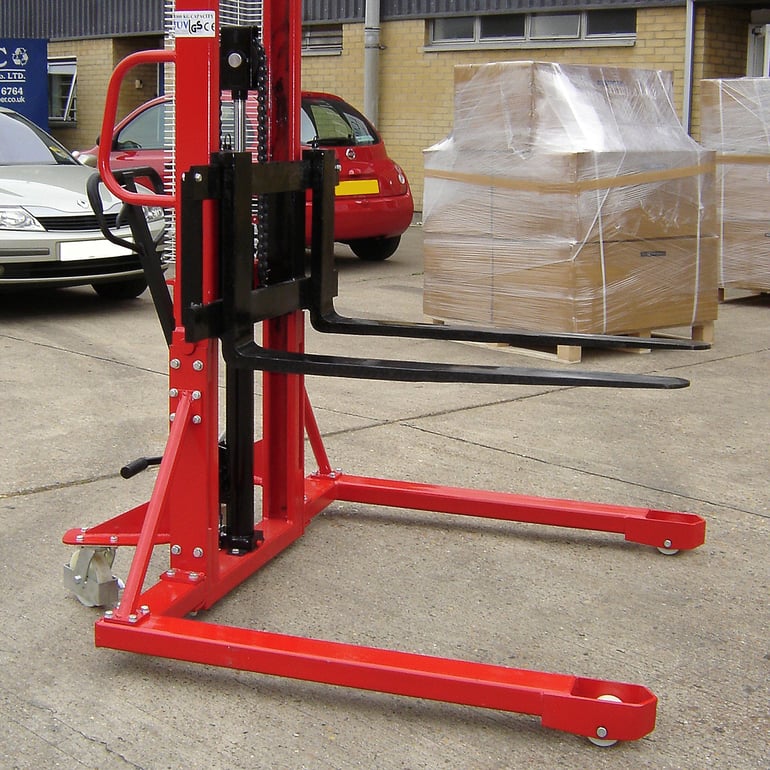

This single-mast straddle stacker, made of robust steel profiles, is suitable for lifting and manoeuvring a range of different pallet types. Straddle legs mean you can handle pallets with closed bottoms such as CHEP pallets. The straddle gap is 1290 mm. Furthermore, the stacker's straddle legs provide excellent balance making pallet handling even safer. The width over the forks can be adjusted between 240 and 940 mm to accommodate the pallet as necessary. The forks can be lifted from 50 mm to 1600 mm with a 25 mm pump stroke and adjustable lowering speed. You can choose to operate the unit using either the hand or foot pump. As standard the truck is supplied with polyurethane steering wheels and tandem polyurethane fork wheels but you can opt to switch them for nylon wheels if you inform us of this at the time of order.


Download care instructions

Product specifications

  • Length:1540 mm
  • Height:2050 mm
  • Width:1500 mm
  • Minimum width:240 mm
  • Maximum width:940 mm
  • Lift height:50-1600 mm
  • Fork length:1060 mm
  • Lift speed:25 mm/sec
  • Colour:Red
  • Material:Steel
  • Load capacity:1000 kg
  • Steering wheel:Polyurethane
  • Fork wheels:Tandem polyurethane
  • Weight:336 kg
  • Assembly:Assembled
