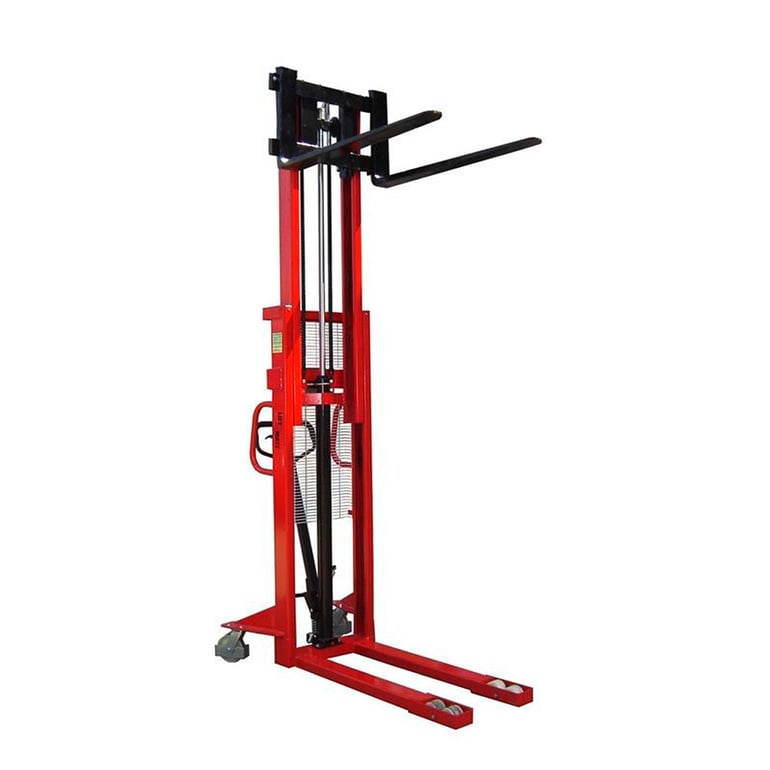

Manual stacker
1000 kg load, 85-2500 mm lift height
Art. no.: 15-2532
- 1000 kg capacity
- Adjustable fork width
- Lifts from 85 to 2500 mm
Manual stacker ideal for lifting and transporting pallets when space is tight or if the need for pallet moving is less frequent. Fitted with 360° steering wheels and tandem fork wheels, all nylon. It comes with a pump handle and foot pedal for optional step-on operation.
This product is no longer available.
See all Stacker trucks hereProduct information
Manufactured from robust steel profiles and fitted with 360° steering wheels (Ø 150 mm), this manual stacker truck is easy to manoeuvre in tight spaces. You can operate it using either the pump handles or foot pump. The width over the forks can be adjusted between 240 and 700 mm to accommodate different pallet types. The forks can be lifted from 85 mm to 2500 mm but please note that the minimum lift height when the forks are directly over the legs is 105 mm, meaning that the truck is not suitable for EUR pallets.
If you need to lift and move pallets frequently, we recommend you take a look at our electric stacker trucks or call us for more details. A straddle version of this truck for handling pallets with closed bases is also available (maximum lift height is 1600 mm).
This product is made to order and therefore non-returnable. For more information, please contact us.
If you need to lift and move pallets frequently, we recommend you take a look at our electric stacker trucks or call us for more details. A straddle version of this truck for handling pallets with closed bases is also available (maximum lift height is 1600 mm).
This product is made to order and therefore non-returnable. For more information, please contact us.
Manufactured from robust steel profiles and fitted with 360° steering wheels (Ø 150 mm), this manual stacker truck is easy to manoeuvre in tight spaces. You can operate it using either the pump handles or foot pump. The width over the forks can be adjusted between 240 and 700 mm to accommodate different pallet types. The forks can be lifted from 85 mm to 2500 mm but please note that the minimum lift height when the forks are directly over the legs is 105 mm, meaning that the truck is not suitable for EUR pallets.
If you need to lift and move pallets frequently, we recommend you take a look at our electric stacker trucks or call us for more details. A straddle version of this truck for handling pallets with closed bases is also available (maximum lift height is 1600 mm).
This product is made to order and therefore non-returnable. For more information, please contact us.
If you need to lift and move pallets frequently, we recommend you take a look at our electric stacker trucks or call us for more details. A straddle version of this truck for handling pallets with closed bases is also available (maximum lift height is 1600 mm).
This product is made to order and therefore non-returnable. For more information, please contact us.
Documents
Product specifications
- Length:1600 mm
- Height:1840 mm
- Width:840 mm
- Frame height min/max:1840 mm
- Minimum width:310 mm
- Maximum width:840 mm
- Lift height:85-2500 mm
- Fork length:1060 mm
- Fork width:100 mm
- Lift speed:25 mm/sec
- Colour:Red
- Material:Steel
- Load capacity:1000 kg
- Steering wheel:Nylon
- Fork wheels:Tandem nylon
- Weight:316 kg
- Assembly:Assembled
