Drum rotator

120° tilt, 400 kg load

Art. no.: 30136
  • Drum can be locked at different angles
  • Easily manoeuvred
  • With quick-lift function

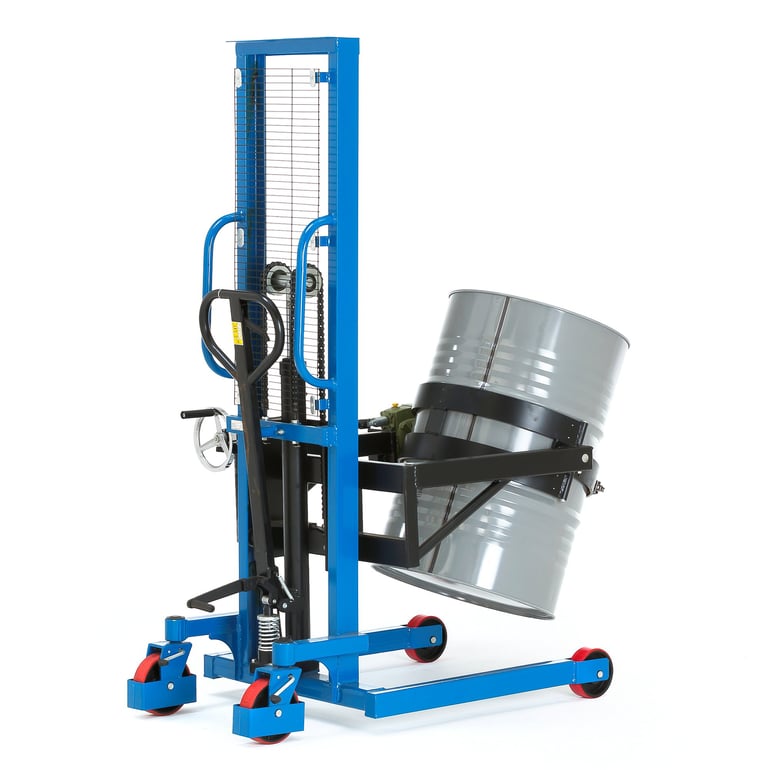

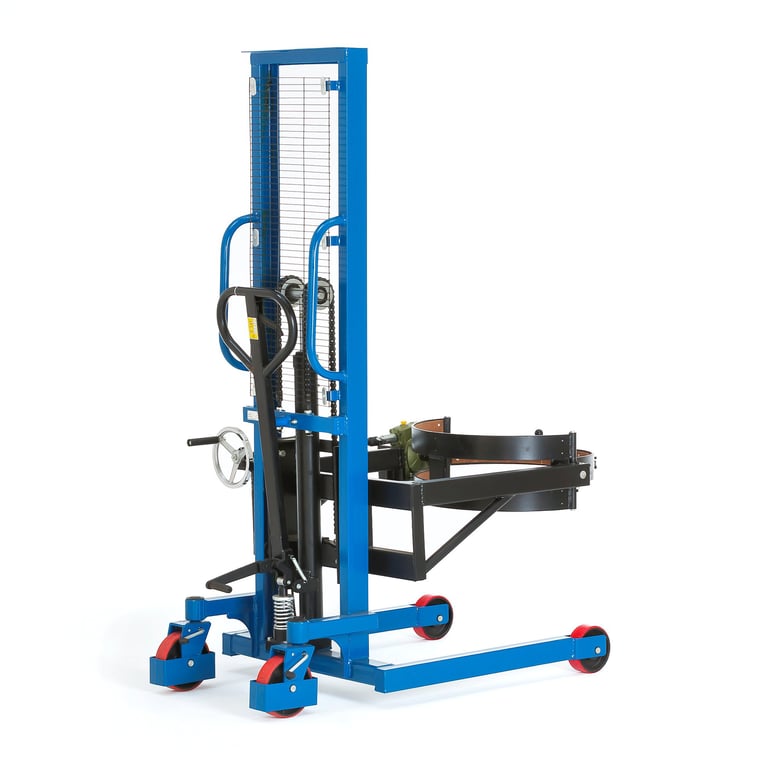

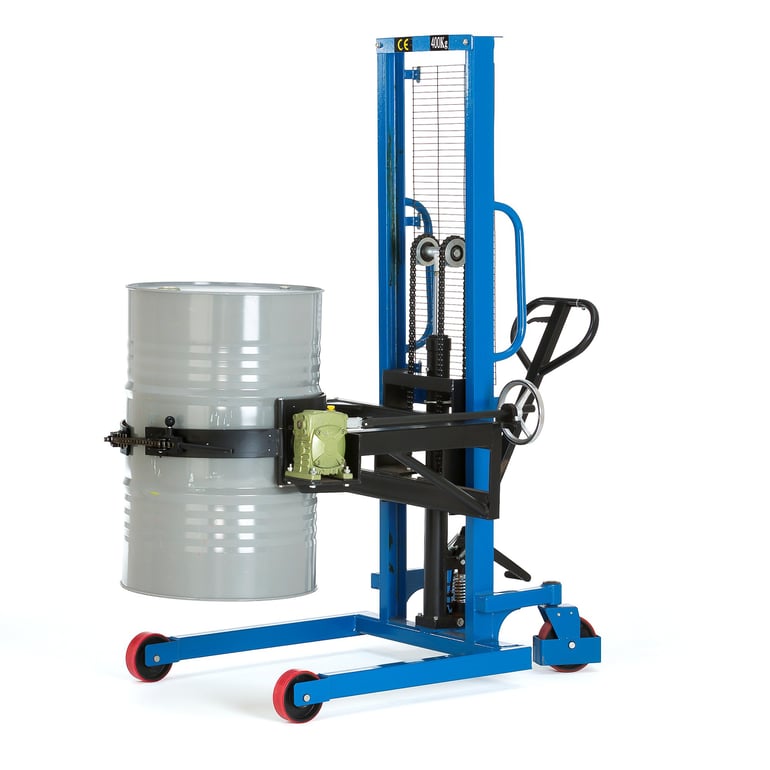

Hydraulic drum rotator for 210 L drums. The drum can be locked vertically, horizontally or at a 120˚ angle. Quick-lift function using the pedal when the drum lifter has no load. Rear swivel castors
Excl. VAT
Loading delivery time...
7 year warranty

Product information

Flexible drum rotator designed to facilitate lifting, handling and emptying of 210 L drums. The drum lifter makes it easy to transport drums at any height up to the maximum lifting height of 1320 mm. It is fitted with a compact and reliable mechanical system that secures the drum during handling.

Lock the drum horizontally or vertically to avoid spills or tilt it 120˚ for easier emptying.

The quick-lift function is foot-pedal operated and helps to streamline your workflow. The drum lifter has two fixed castors at the front and two swivel castors at the rear. The swivel castors make it extra easy to manoeuvre the drum lifter as you push it. The castors have polyurethane treads. These provide low rolling resistance and smooth and even operation. The polyurethane castors are very durable and resistant to oil, grease and many chemicals.


Product specifications

  • Length:1300 mm
  • Height:2000 mm
  • Width:890 mm
  • Wheel diameter:180 mm
  • Colour:Blue
  • Material:Sheet steel
  • Load capacity:400 kg
  • Intended for:Steel drum
  • Tyre tread:Polyurethane
  • Weight:190 kg
  • Assembly:Assembled
  • Testing:CE
