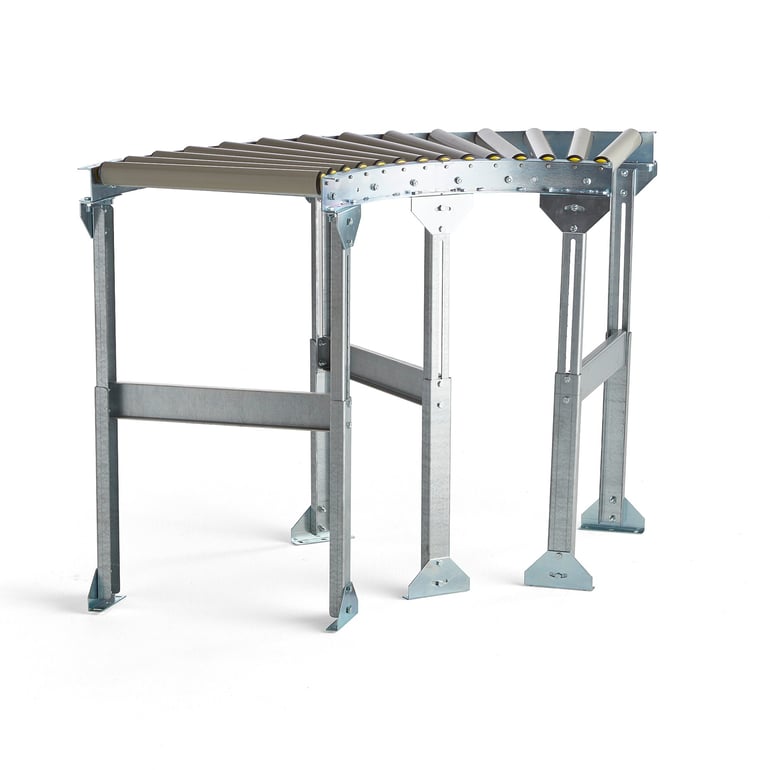

Roller conveyor LINE
90° curved, PVC rollers, 1030x600 mm
Art. no.: 259070
- For light/medium-weight goods
- Durable PVC rollers
- Adjustable in height
Length (mm)
Load width (mm)
£999.00
Ex. VAT
Availability
Loading delivery time...
7 year warranty
Non-motorised roller conveyor for handling light/medium weight goods with a smooth base, such as plastic trays. The conveyor is adjustable in height and has a spring-loaded 8 mm axle. Max. load is calculated based on 2 supporting stands per 1000/1500 mm and 3 supporting stands per 3000 mm length.
Product information
An unpowered roller conveyor that simplifies the movement of light and medium-weight piece goods. The roller conveyor's adjustable height makes it possible to adapt the conveyor according to the load for a comfortable work position.
The conveyor has sturdy 50 mm steel rollers mounted at c/c 105 mm, with a galvanised U profile. It has an 8 mm spring-loaded axle throughout the length. The load capacity applies to evenly distributed loads. Adjustable support frames, fixed end stops and a connection kit for joining two straight conveyors are available as accessories (sold separately).
The conveyor has sturdy 50 mm steel rollers mounted at c/c 105 mm, with a galvanised U profile. It has an 8 mm spring-loaded axle throughout the length. The load capacity applies to evenly distributed loads. Adjustable support frames, fixed end stops and a connection kit for joining two straight conveyors are available as accessories (sold separately).
An unpowered roller conveyor that simplifies the movement of light and medium-weight piece goods. The roller conveyor's adjustable height makes it possible to adapt the conveyor according to the load for a comfortable work position.
The conveyor has sturdy 50 mm steel rollers mounted at c/c 105 mm, with a galvanised U profile. It has an 8 mm spring-loaded axle throughout the length. The load capacity applies to evenly distributed loads. Adjustable support frames, fixed end stops and a connection kit for joining two straight conveyors are available as accessories (sold separately).
The conveyor has sturdy 50 mm steel rollers mounted at c/c 105 mm, with a galvanised U profile. It has an 8 mm spring-loaded axle throughout the length. The load capacity applies to evenly distributed loads. Adjustable support frames, fixed end stops and a connection kit for joining two straight conveyors are available as accessories (sold separately).
Documents
Product specifications
- Length:1030 mm
- Width:660 mm
- Diameter:50 mm
- Load width:600 mm
- Frame material:Steel
- Rollers colour:Grey
- Rollers material:PVC
- /meter load capacity:200 kg
- Angle:90 °
- Weight:18.01 kg
- Assembly:Delivered unassembled
