ESD floor mat

600x900 mm, grey

Art. no.: 15-1431
  • Eliminate electrostatic discharge
  • Improve comfort underfoot
  • Protect workers and components
Length (mm)
Width (mm)
£29.00
Excl. VAT
Loading delivery time...
7 year warranty

Product information

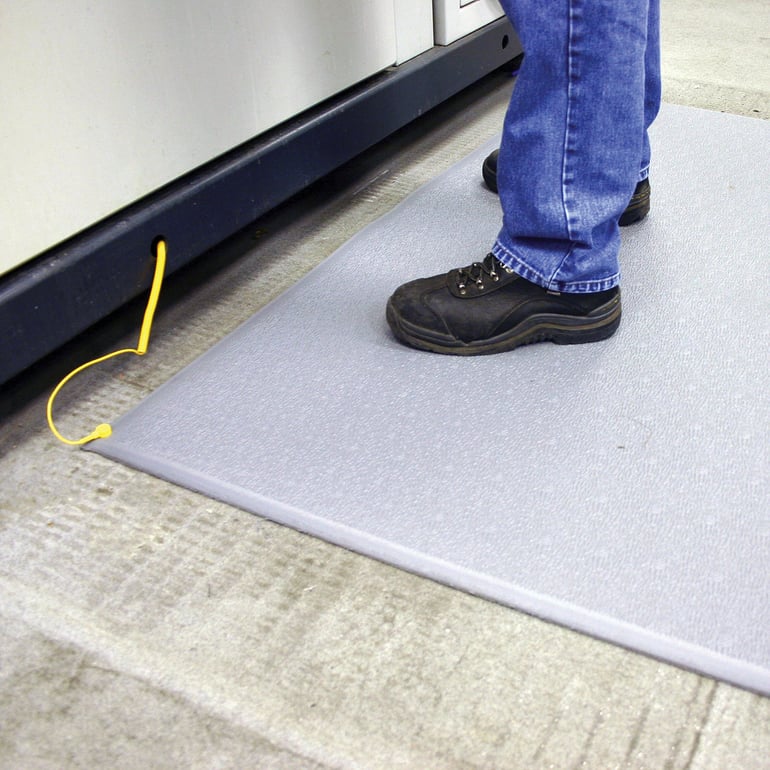

Static-dissipative floor mat with anti-fatigue properties. Made of virgin closed cell PVC foam with a textured surface.
This durable ESD floor mat has static-dissipative properties designed to protect operatives from static electricity build up. Thanks to its anti-fatigue properties, the matting also provides relief to tired feet and legs. It is grounded via a 10 mm male stud fitted to the mat. Resistance: 1 x 109Ω to 1 x 1010Ω. The matting is ideal around areas where static build up is common or for working with electronics. However, it is not suitable for use in high voltage areas exceeding 240 volts. For maximum performance your mat should be used with a grounding wire and bonding plug, available as accessories.

Electrostatic discharge (ESD) can pose a serious risk in environments with a lot of electrical equipment and is of particular concern to electronics manufacturing businesses. ESD not only exposes workers to static shock but it can also permanently damage sensitive electronical components. Creating an ESD protected area (EPA) mitigates these hazards by preventing the build-up of static charge through the grounding of both workers and conductive materials. Combine your static-dissipative mat with grounding wristbands or heel straps to create a complete EPA.
This durable ESD floor mat has static-dissipative properties designed to protect operatives from static electricity build up. Thanks to its anti-fatigue properties, the matting also provides relief to tired feet and legs. It is grounded via a 10 mm male stud fitted to the mat. Resistance: 1 x 109Ω to 1 x 1010Ω. The matting is ideal around areas where static build up is common or for working with electronics. However, it is not suitable for use in high voltage areas exceeding 240 volts. For maximum performance your mat should be used with a grounding wire and bonding plug, available as accessories.

Electrostatic discharge (ESD) can pose a serious risk in environments with a lot of electrical equipment and is of particular concern to electronics manufacturing businesses. ESD not only exposes workers to static shock but it can also permanently damage sensitive electronical components. Creating an ESD protected area (EPA) mitigates these hazards by preventing the build-up of static charge through the grounding of both workers and conductive materials. Combine your static-dissipative mat with grounding wristbands or heel straps to create a complete EPA.

Documents

Product specifications

  • Length:900 mm
  • Width:600 mm
  • Thickness:9 mm
  • Colour:Grey
  • Material:PVC
  • Weight:2 kg
  • Assembly:Assembled
  • Testing:FMVSS 302
