Electrical matting SWITCH
Class 0, full roll, 1000x10000x3 mm, black
Art. no.: 15-5095
- Conforms to BS EN 61111
- Tested for use in high voltage areas
- Ensures user safety
This product is no longer available.
See all ESD matting hereAvailability
Loading delivery time...
7 year warranty
Specialist electrical insulation matting for use in front of switchboards and in other areas with high voltage equipment to protect operatives against electric shocks. Meets (BS) EN 61111:2009 standard.
Product information

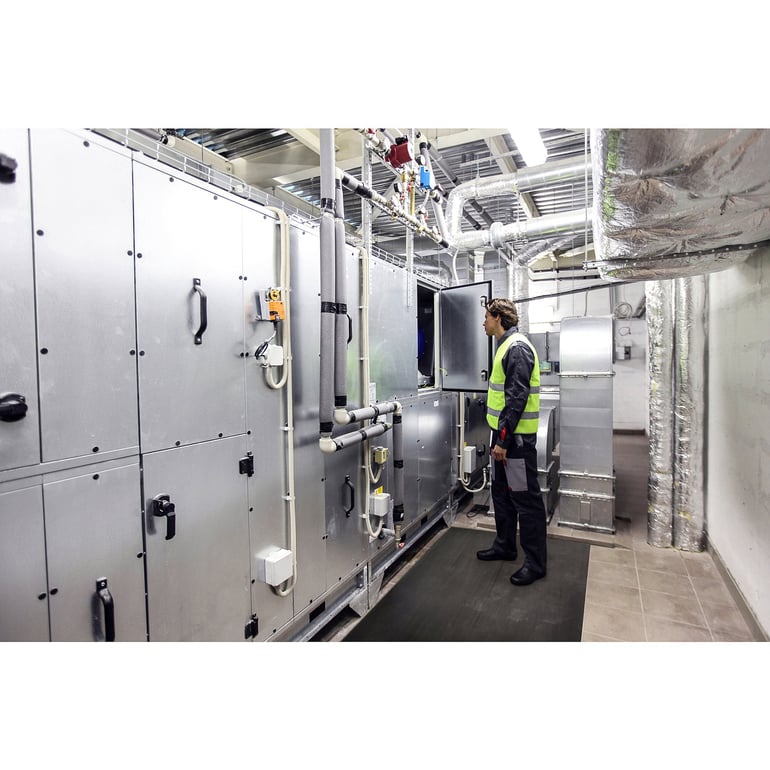

This specially-designed electrical insulation mat protects operatives against electrical shocks from open switchboards or high voltage equipment and is recommended for any areas where staff are at risk. The matting meets the most recent internationally recognised safety standard IEC 61111:2009, also known as (BS) EN 61111:2009.
There are three different thicknesses available to meet the different classes of working voltage: Class 0, Class 2 and Class 4.
Class 0: 3 mm thick; 1 KW working voltage; tested to 10 KW.
Class 2: 4 mm thick; 17 KW working voltage; tested to 30 KW.
Class 4: 5 mm thick; 36 KW working voltage; tested to 50 KW.

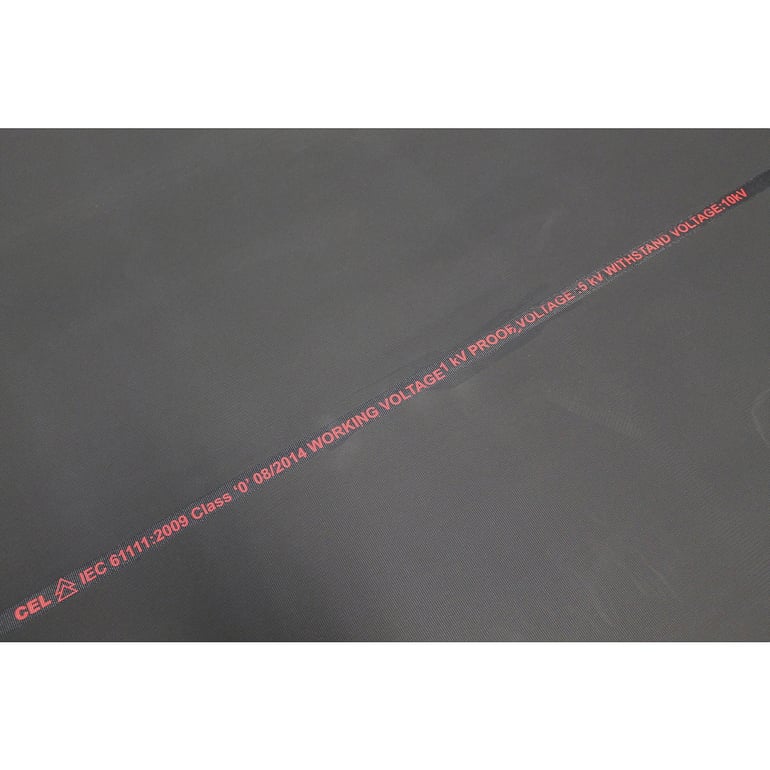

Each mat is colour coded on the reverse to clearly identify its voltage classification.

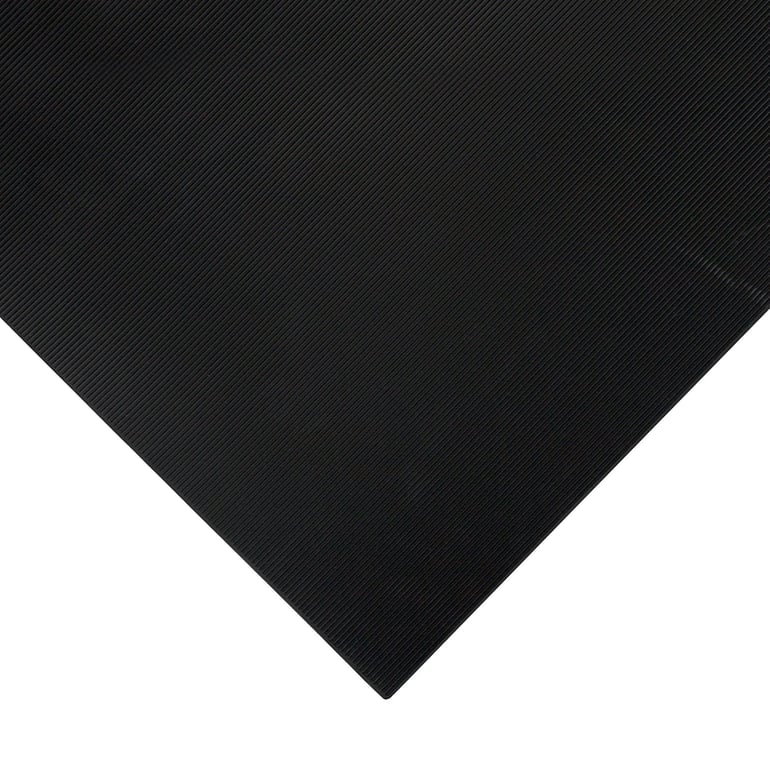

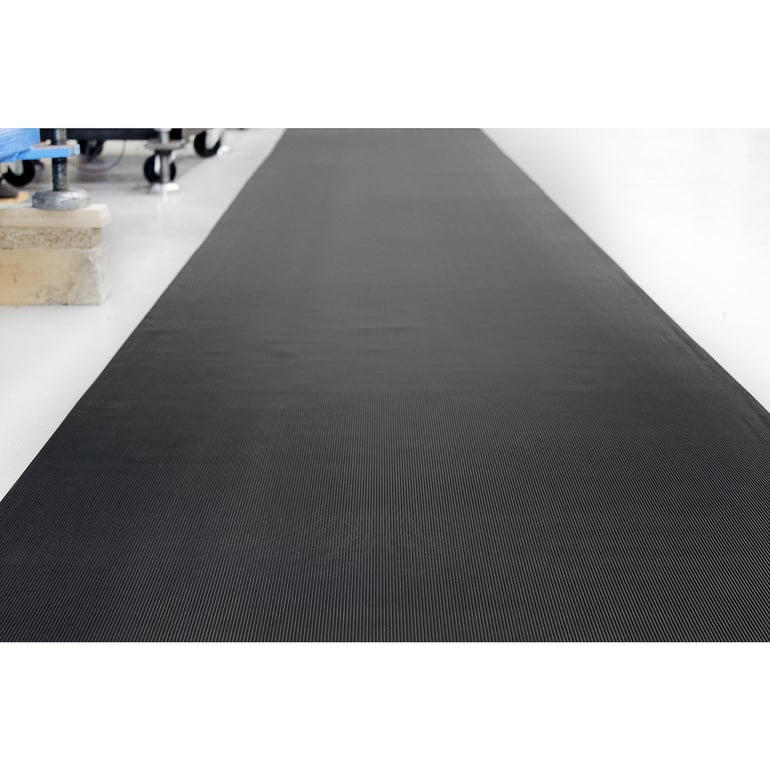

The electrical safety matting is made from EPDM rubber with a finely ribbed surface that helps prevents slip accidents. The mat is highly durable and is suitable for dry indoor environments in temperatures between -30°C and +80°C. Resistant to acid and oil at low temperatures. The mat is loose lay and easy to install. It can be hosed down or pressure washed using a mild detergent.
There are three different thicknesses available to meet the different classes of working voltage: Class 0, Class 2 and Class 4.
Class 0: 3 mm thick; 1 KW working voltage; tested to 10 KW.
Class 2: 4 mm thick; 17 KW working voltage; tested to 30 KW.
Class 4: 5 mm thick; 36 KW working voltage; tested to 50 KW.
Each mat is colour coded on the reverse to clearly identify its voltage classification.
The electrical safety matting is made from EPDM rubber with a finely ribbed surface that helps prevents slip accidents. The mat is highly durable and is suitable for dry indoor environments in temperatures between -30°C and +80°C. Resistant to acid and oil at low temperatures. The mat is loose lay and easy to install. It can be hosed down or pressure washed using a mild detergent.
This specially-designed electrical insulation mat protects operatives against electrical shocks from open switchboards or high voltage equipment and is recommended for any areas where staff are at risk. The matting meets the most recent internationally recognised safety standard IEC 61111:2009, also known as (BS) EN 61111:2009.
There are three different thicknesses available to meet the different classes of working voltage: Class 0, Class 2 and Class 4.
Class 0: 3 mm thick; 1 KW working voltage; tested to 10 KW.
Class 2: 4 mm thick; 17 KW working voltage; tested to 30 KW.
Class 4: 5 mm thick; 36 KW working voltage; tested to 50 KW.
Each mat is colour coded on the reverse to clearly identify its voltage classification.
The electrical safety matting is made from EPDM rubber with a finely ribbed surface that helps prevents slip accidents. The mat is highly durable and is suitable for dry indoor environments in temperatures between -30°C and +80°C. Resistant to acid and oil at low temperatures. The mat is loose lay and easy to install. It can be hosed down or pressure washed using a mild detergent.
There are three different thicknesses available to meet the different classes of working voltage: Class 0, Class 2 and Class 4.
Class 0: 3 mm thick; 1 KW working voltage; tested to 10 KW.
Class 2: 4 mm thick; 17 KW working voltage; tested to 30 KW.
Class 4: 5 mm thick; 36 KW working voltage; tested to 50 KW.
Each mat is colour coded on the reverse to clearly identify its voltage classification.
The electrical safety matting is made from EPDM rubber with a finely ribbed surface that helps prevents slip accidents. The mat is highly durable and is suitable for dry indoor environments in temperatures between -30°C and +80°C. Resistant to acid and oil at low temperatures. The mat is loose lay and easy to install. It can be hosed down or pressure washed using a mild detergent.
Documents
Product specifications
- Length:10000 mm
- Width:1000 mm
- Thickness:3 mm
- Colour:Black
- Material:Rubber
- Weight:45 kg
- Assembly:Assembled
- Testing:BS EN 61111
